ergotron StyleView® Vertical Lift 60-609-216 Perfect for space-constrained patient exam rooms, the low-profile vertical lift provides 9" (23 cm) of smooth vertical adjustment and folds into a slim, compact unit when not in use. The slide-out, negative tilt keyboard enhances user comfort, while the monitor and keyboard pan capability promote patient-caregiver interaction. A unique cable management system conceals and organizes cords and makes cleaning a snap!
商品描述：
ergotron StyleView® Vertical Lift 60-609-216
Perfect for space-constrained patient exam rooms, the low-profile vertical lift provides 9" (23 cm) of smooth vertical adjustment and folds into a slim, compact unit when not in use.
The slide-out, negative tilt keyboard enhances user comfort, while the monitor and keyboard pan capability promote patient-caregiver interaction. A unique cable management system conceals and organizes cords and makes cleaning a snap!
好处：
Side-to-side pan of keyboard and display promote patient caregiver interaction while access data
Slide-out Keyboard Tray can extend out an extra 5" (125 mm) for comfortable data entry

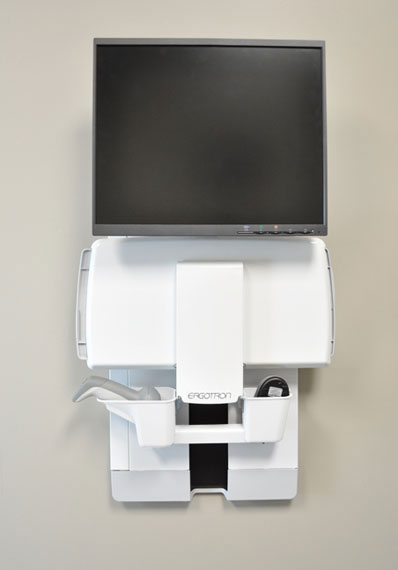

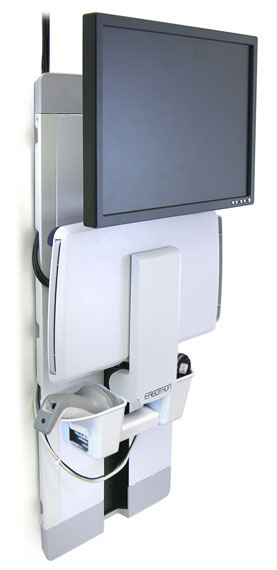

With the keyboard folded up, total system depth is as little as 4.5" (114 mm)
Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry
Patented counterbalance system provides smooth adjustment while maintaining touch-screen stability
9" (229 mm) vertical adjustment enhances ergonomics for multiple users
Steel construction for long-lasting durability
Right- or left-side cable management system conceals and organizes cords and makes cleaning a snap!
尺寸规格：
ergotron StyleView® Vertical Lift 60-609-216
Perfect for space-constrained patient exam rooms, the low-profile vertical lift provides 9" (23 cm) of smooth vertical adjustment and folds into a slim, compact unit when not in use.
The slide-out, negative tilt keyboard enhances user comfort, while the monitor and keyboard pan capability promote patient-caregiver interaction. A unique cable management system conceals and organizes cords and makes cleaning a snap!
好处：
Side-to-side pan of keyboard and display promote patient caregiver interaction while access data
Slide-out Keyboard Tray can extend out an extra 5" (125 mm) for comfortable data entry
With the keyboard folded up, total system depth is as little as 4.5" (114 mm)
Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry
Patented counterbalance system provides smooth adjustment while maintaining touch-screen stability
9" (229 mm) vertical adjustment enhances ergonomics for multiple users
Steel construction for long-lasting durability
Right- or left-side cable management system conceals and organizes cords and makes cleaning a snap!
尺寸规格：
|
Part Number: 60-609-216 (formerly 60-594-216)
|
|
Description: StyleView Vertical Lift, Patient Room version (white)
|
|
Includes mouse pad, wrist rest, mouse pouch, scanner holder
|
|
† Larger display sizes may inhibit the keyboard tray folding flat in storage position. See Dimensional Illustrations for details
|
|
*

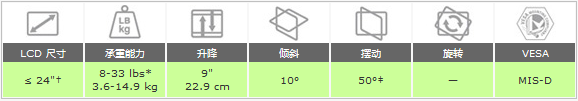

Weight Capacity: Listed weight capacity represents total load,
including both the monitor and contents of keyboard tray. Maximum
monitor weight = 25 lbs (11.3 kg); monitor thickness greater than 3"
(7.6 cm) may decrease capacity
|
|
Mounting Standards: VESA FDMI MIS-D, 100/75 (hole pattern: 100 x 100 mm & 75 x 75 mm)
|
|
‡ Monitor pans left/right up to 50° (varies per size of monitor)
|
|
Fold-down keyboard with built-in mouse pad surface
|
|
Keyboard tray extends out up to 5" (127 mm) inches when in use
|
|
Keyboard tray pans left/right up to 120°
|
|
Back-tilt keyboard tray adjustable (0 to -10 degrees)
|
|

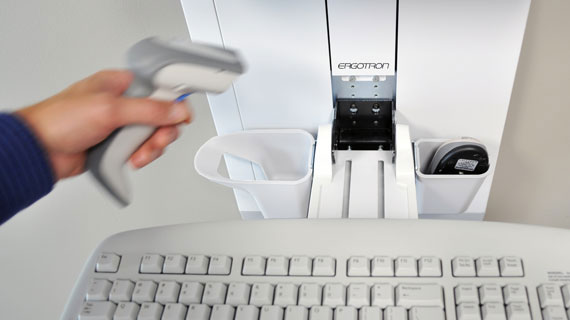

Scanner and mouse holder integrated into the keyboard tray
|
|
Integrated cable management system can be configured on either side
|
|
Easy-to-clean exterior
|
|
Shipping Dimensions: 39.5" x 16" x 10.75" (1000 x 406 x 273 mm)
|
|
Shipping Weight: 35.5 lbs (16.1 kg)
|
|
Warranty: Five (5) years
|
